CONSTRUCTION SPECIFICATIONS

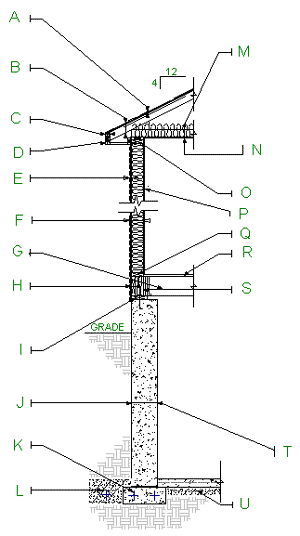

Typical Quality Homes, Inc. Wall Section



A.

250# Asphalt Shingles
1 Layers Felt Paper
Ice & Water Shield

L.
4" Drain Tile
12" Gravel Fill

B.

1/2" 4 Ply Plywood Sheathing
Engineered Trusses 24" O.C.
1" Cont. Air Space

M.
Eng. Roof Trusses 24" O.C.
R-50 Ceiling Insulation
5/8 Ceiling Drywall

C.

Drip Edge
Steel Fascia
2"x6" Sub Fascia

N.
5/8" Fire Code Drywall

D.

Vented Alum. Soffit
2"x4" Soffit Nailer

O.
Double 2"x6" Top Plate
E.
Pre-finished LP Smartside Siding
House Wrap
4x9 7/16 Exterior Sheathing

P.
1/2" Drywall
F.
5 1/2" Wall Studs 16" O.C.
R 23 Blown Wall Insulation
1/2" Drywall

Q.
2"x6" Bottom Plate
G.
2"x10" Wood I Joist 16" O.C.

R.
3/4" T & G OSB Flooring
H.
2"x10" LVL Rim Joist
1/2" Exterior Sheathing

S.
Rim Joist Insulation
I.

2"x6" Treated Sill Plate
Sill Seal
1/2" Anchor Bolts 6' O.C.

T.
Foundation By Owner
J.

Poured Concrete Wall
With Vertical Reinf (If Required)
Damp Proofing (To Grade)

U.
4" Gravel Base
K.

8"x16" Cont. Concrete Footing
Re-Bar (2)
